Operate a SignaLink USB from an Anytone D578
AnyTone AT-D578UV III Pro

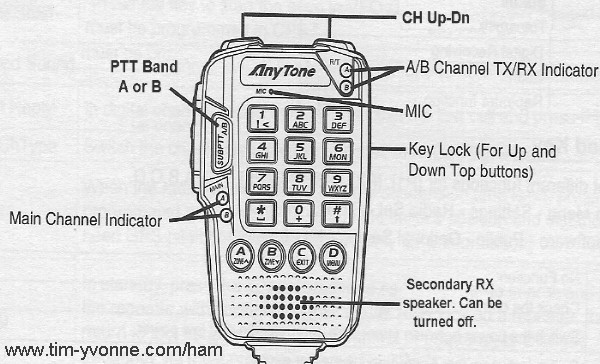

*Click HERE for the Bluetooth Handmic page*
*Click HERE for my Hints & Tips page*
*Click HERE for a WORD doc on setting up APRS-GPS
*Click HERE for Jasons intense web page on the D578*
Codeplug and Configuration
If you don't already have the D578 programming software, download it from the internet.
Note the CPS program version and radio firmware version should match.You probably won't need to load a COM driver, I suggest trying to read the radio first. But if you need a driver, click HERE
For a quick & easy pre-made codeplug for the original version 578... left/right click HERE (save as) to download a codeplug that will get you on the air fast (if given a choice, do not save this as a text file). This file uses CPS v1.17
For the newer 578 V3 (VIII)... left/right click HERE (save as) to download a codeplug that will get you on the air fast (if given a choice, do not save this as a text file). This file uses CPS v1.17
This is a basic program file with all the digital groups used on Timz DMR repeater, and local analog repeaters as well. There are just two zones, Analog and Timz DMR digital... making operation easy.
After download, load the file into your D578 program and make the following changes before burning your radio:

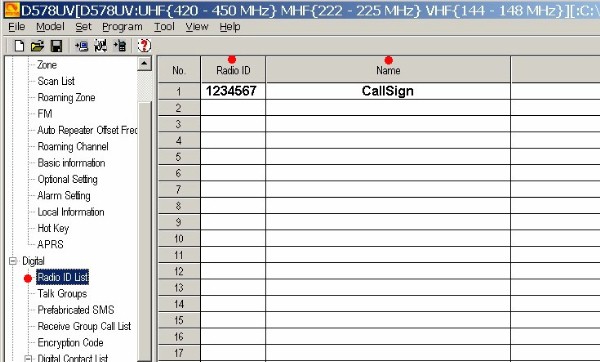

1. Click on Digital; Radio ID list.
2. Click the number 1 at the top of the list
3. Enter in your DMR ID number in the Radio ID box, and then your CallSign in the Name box; then click OK
note: you will need a digital radio ID; it's easy & free. click: https://www.radioid.net/#!
click the box near the bottom of the page: "I AGREE TO THE ABOVE TERMS AND CONDITIONS", and then click
"Register Account"
4. Save this file under a new name to your computer
5. Then send (write) the file to the radio.

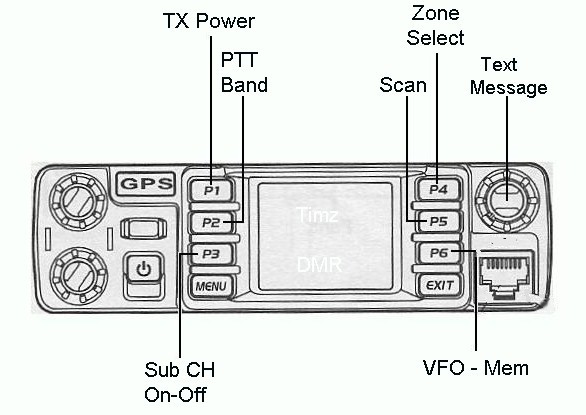

Button Assignments - when using Timz Quick List codeplug:
the A, B, C, D buttons are already labeled.
*Click HERE for the Hints & Tips page
* Operating a SignaLink USB from a D578
